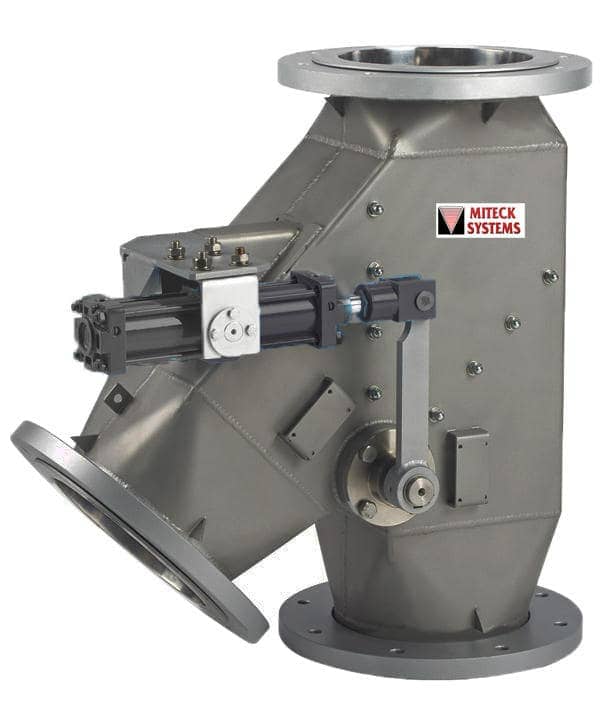

Material flow diverter is used for selecting one out of two outlet ports. The flow through these valves is essentially a gravity flow and the position of the diverter flap decides which of the two outlet ports will be active.
MITECK SYSTEMS manufactures & supplies these fabricated valves as per customers’ requirements.
Diverter valves are designed to direct product flow outlets of storage bins, silo conveyors, gravity flow chutes and other discharge points handling powders, granules, grains and other bulk solids. These valves are available in deflector or diverter types, with three-positional control on diverter if required to split the flow.
The splitting of flow can be achieved by positioning the diverter flap in an intermediate position. However, middle position will not necessarily mean equal splitting of flow as the location of valve and material flow characteristic can influence the flow splitting ratio.
MITECK SYSTEMS also manufactures “TRIVERTOR GATE VALES”, which is a variation on Diverter gate valves having three possible outlets instead of two.
APPLICATIONS
As the name suggests, Diverter Gate Valves are used to determine the outflow of bulk, free flowing material from a vessel bin. The vessel could be hoppers, silos, bag filter, bins etc. and the feeder can be any type of bulk material conveyor.
- They are used in various industries such as cement, chemicals, mining, mineral process, textile, paper, food grains, etc
Common industry uses for Material flow diverter :
Conveying & metering | Cement industry |
Mining | Grain & hops handling/storage |
Wood Products | Waste & sawdust |
Paper | Pulp & chip handling |
Steel industry | Gypsum conveying for wallboard |
Lead Products | Recycled lead |
Food Handling | Various food-grade applications |
Salt Mines | Mixing, conveying, blending |
Steel Mills | Dust collection & storage |
Sewage Plants | Sludge conveying & storage |
Chemical Plants | Prevents contamination |
Feed & Grain | Various applications |
Rendering | Extensive use, washes down |
Glass Plants |
The body of Divertoris fabricated from different type of material suitable for site condition and client requirement. Standard materials of construction for critical parts of Divertor are-
-
-
- Body: A36, IS 2062, A516, IS 2002, Corten, SS 304, SS 316, Inconel etc.
- Blade: A36, IS 2062, A516, IS 2002, Corten, SS 304, SS 316, Inconel etc.
- Shaft/Screw: En8, En24, SS 304, SS 316, etc.
- Seal: SS 316Ti, Inconel etc.
- Bearing: C.I lined Bush type with Grafoil Sheet, maintenance free / Antifriction
-
Other materials of construction can be used as required by client.
SEAL
These Material flow diverter designed for sealing up to 99.9% without seal air system and 100% with seal air system. Shut of blinds are also provide 100% sealing across blade & 99.9% duct to/from atmosphere. Type of seals: Bulb seal/ Flexible seal
